Product Parameters
Note: The table is a standard model and can be customized

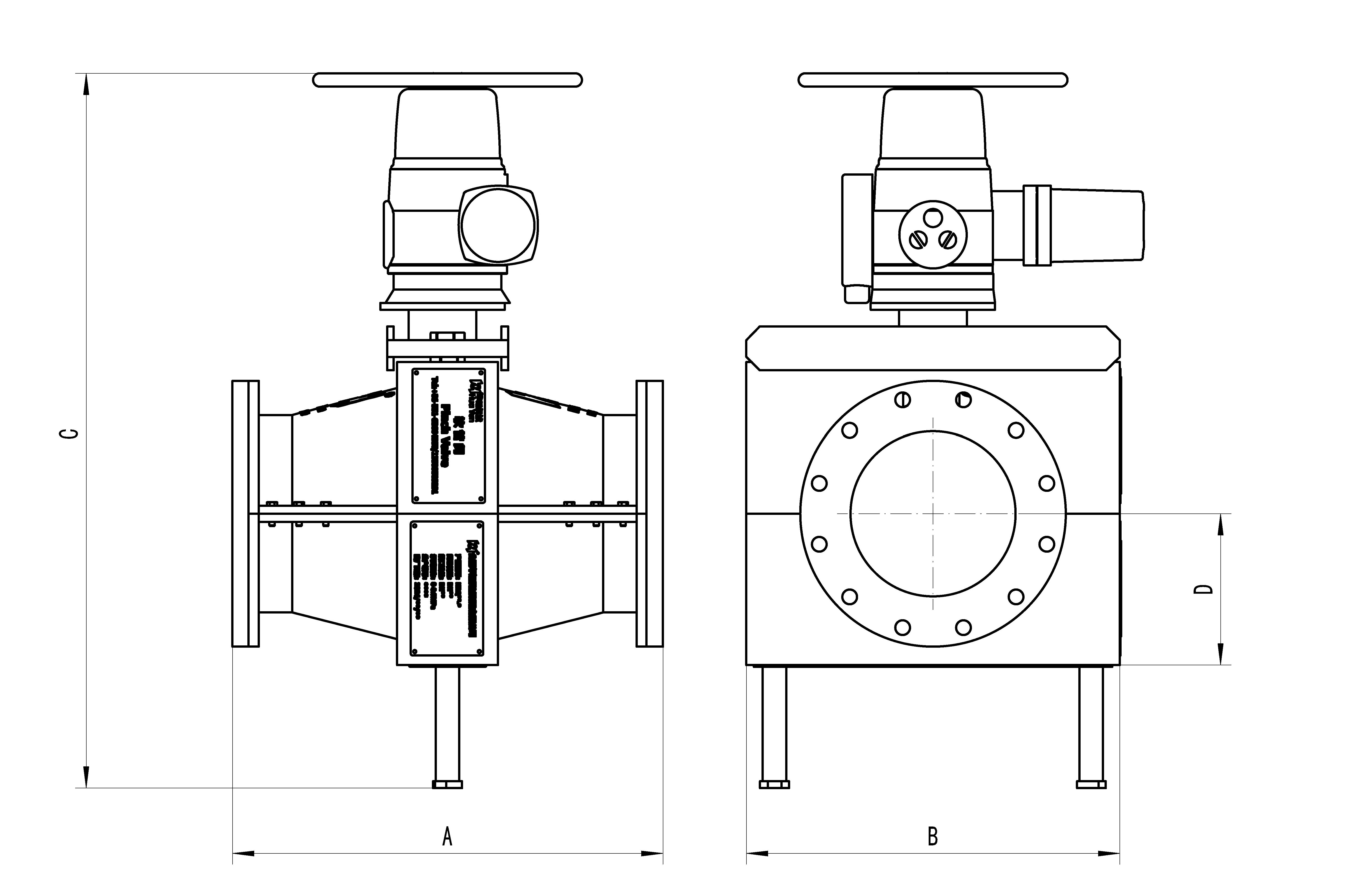

Huayun HRQ（light）pinch valve Electric type specification table |
||||||||
Product Model |
Nominal diameter
（mm） |
Nominal pressure
（MPa） |
Temperature range（℃） |
A（mm） |
B(mm) |
C（mm） |
D（mm） |
Drive mode |
HRQ25-EK |
DN25 |
0-1.6 |
-40℃~+100℃ |
190 |
185 |
405 |
61 |
Electric switch type |
HRQ25-ET |
DN25 |
0-1.6 |
-40℃~+100℃ |
190 |
185 |
405 |
61 |
Electric adjustment type |
HRQ32-EK |
DN32 |
0-1.6 |
-40℃~+100℃ |
210 |
195 |
435 |
70 |
Electric switch type |
HRQ32-ET |
DN32 |
0-1.6 |
-40℃~+100℃ |
210 |
195 |
435 |
70 |
Electric adjustment type |
HRQ50-EK |
DN50 |
0-1.6 |
-40℃~+100℃ |
212 |
210 |
480 |
95 |
Electric switch type |
HRQ50-ET |
DN50 |
0-1.6 |
-40℃~+100℃ |
212 |
210 |
480 |
95 |
Electric adjustment type |
HRQ65-EK |
DN65 |
0-1.6 |
-40℃~+100℃ |
300 |
275 |
520 |
115 |
Electric switch type |
HRQ65-ET |
DN65 |
0-1.6 |
-40℃~+100℃ |
300 |
275 |
520 |
115 |
Electric adjustment type |
HRQ80-EK |
DN80 |
0-1.6 |
-40℃~+100℃ |
350 |
290 |
538 |
125 |
Electric switch type |
HRQ80-ET |
DN80 |
0-1.6 |
-40℃~+100℃ |
350 |
290 |
538 |
125 |
Electric adjustment type |
HRQ100-EK |
DN100 |
0-1.6 |
-40℃~+100℃ |
434 |
327 |
657 |
135 |
Electric switch type |
HRQ100-ET |
DN100 |
0-1.6 |
-40℃~+100℃ |
434 |
327 |
657 |
135 |
Electric adjustment type |
HRQ125-EK |
DN125 |
0-1.6 |
-40℃~+100℃ |
460 |
370 |
702 |
150 |
Electric switch type |
HRQ125-ET |
DN125 |
0-1.6 |
-40℃~+100℃ |
460 |
370 |
702 |
150 |
Electric adjustment type |
HRQ150-EK |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
415 |
854 |
163 |
Electric switch type |
HRQ150-ET |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
415 |
854 |
163 |
Electric adjustment type |
HRQ200-EK |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
497 |
990 |
200 |
Electric switch type |
HRQ200-ET |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
497 |
990 |
200 |
Electric adjustment type |
HRQ250-EK |
DN250 |
0-1.6 |
-40℃~+100℃ |
640 |
555 |
1040 |
225 |
Electric switch type |
HRQ250-ET |
DN250 |
0-1.6 |
-40℃~+100℃ |
640 |
555 |
1040 |
225 |
Electric adjustment type |
HRQ300-EK |
DN300 |
0-1.6 |
-40℃~+100℃ |
750 |
610 |
1540 |
278 |
Electric switch type |
HRQ300-ET |
DN300 |
0-1.6 |
-40℃~+100℃ |
750 |
610 |
1540 |
278 |
Electric adjustment type |
HRQ350-EK |
DN350 |
0-1.6 |
-40℃~+100℃ |
890 |
1040 |
1670 |
300 |
Electric switch type |
HRQ350-ET |
DN350 |
0-1.6 |
-40℃~+100℃ |
890 |
1040 |
1670 |
300 |
Electric adjustment type |
HRQ400-EK |
DN400 |
0-1.6 |
-40℃~+100℃ |
1090 |
1090 |
1740 |
320 |
Electric switch type |
HRQ400-ET |
DN400 |
0-1.6 |
-40℃~+100℃ |
1090 |
1090 |
1740 |
320 |
Electric adjustment type |
HRQ450-EK |
DN450 |
0-1.6 |
-40℃~+100℃ |
1120 |
1140 |
1815 |
370 |
Electric switch type |
HRQ450-ET |
DN450 |
0-1.6 |
-40℃~+100℃ |
1120 |
1140 |
1815 |
370 |
Electric adjustment type |
HRQ500-EK |
DN500 |
0-1.6 |
-40℃~+100℃ |
1240 |
1190 |
1865 |
420 |
Electric switch type |
HRQ500-ET |
DN500 |
0-1.6 |
-40℃~+100℃ |
1240 |
1190 |
1865 |
420 |
Electric adjustment type |
HRQ600-EK |
DN600 |
0-1.6 |
-40℃~+100℃ |
1450 |
1350 |
1980 |
490 |
Electric switch type |
HRQ600-ET |
DN600 |
0-1.6 |
-40℃~+100℃ |
1450 |
1350 |
1980 |
490 |
Electric adjustment type |
HRQ700-EK |
DN700 |
0-1.6 |
-40℃~+100℃ |
1660 |
1490 |
2030 |
540 |
Electric switch type |
HRQ700-ET |
DN700 |
0-1.6 |
-40℃~+100℃ |
1660 |
1490 |
2030 |
540 |
Electric adjustment type |
HRQ800-EK |
DN800 |
0-1.6 |
-40℃~+100℃ |
1880 |
1610 |
2150 |
590 |
Electric switch type |
HRQ800-ET |
DN800 |
0-1.6 |
-40℃~+100℃ |
1880 |
1610 |
2150 |
590 |
Electric adjustment type |
