Product Parameters

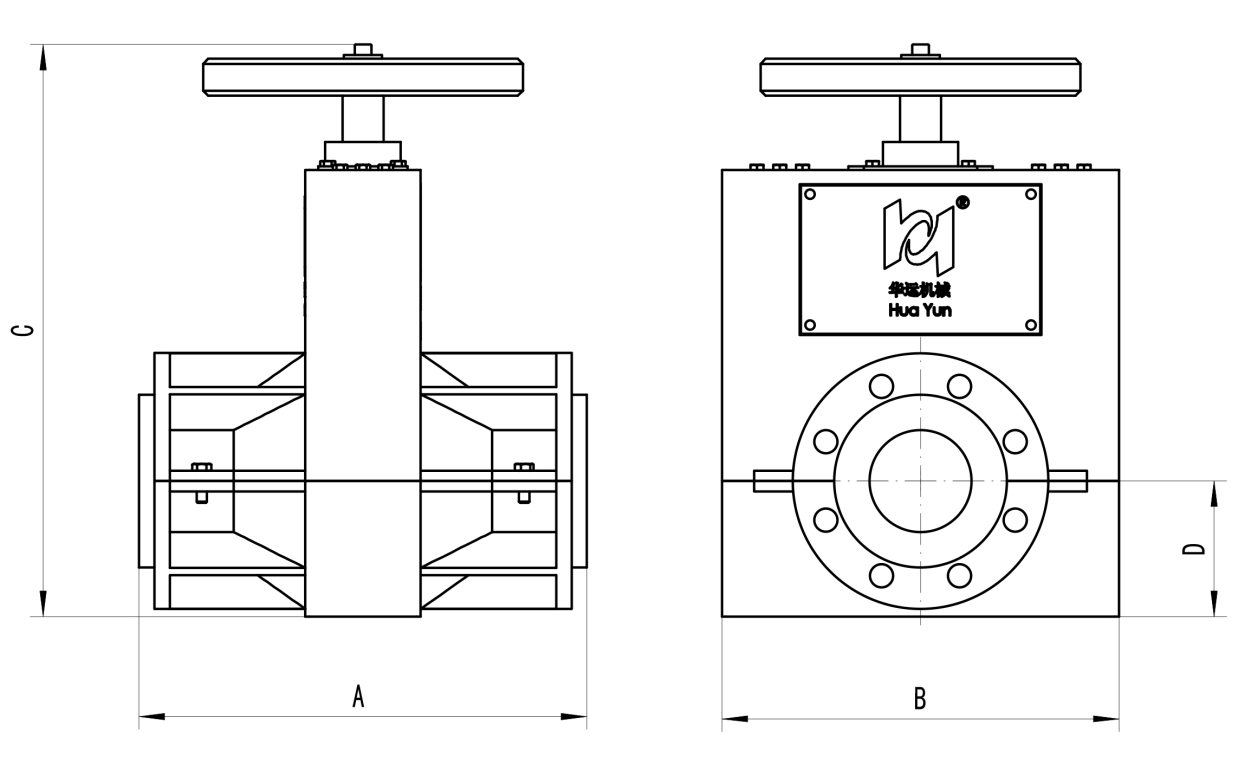

Huayun HRZ pinch valve manual handwheel type
Note: The table is a standard model and can be customized

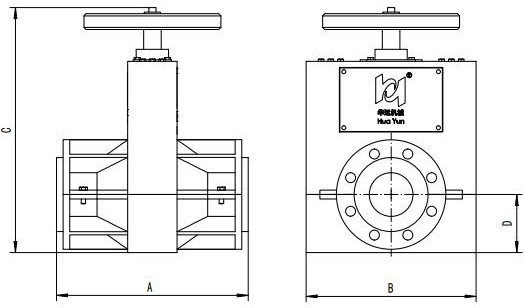

| Huayun HRZ（Heavy）pinch valve manual gearbox type specification table | ||||||||
Product Model |
Nominal diameter
（mm） |
Nominal pressure
（MPa） |
Temperature range（℃） |
A（mm） |
B(mm) |
C（mm） |
D（mm） |
Drive mode |
HRZ25-M |
DN25 |
0-2.5 |
-40℃~+100℃ |
190 |
200 |
300 |
65 |
Manual Handwheel with gearbox |
HRZ32-M |
DN32 |
0-2.5 |
-40℃~+100℃ |
210 |
210 |
310 |
76 |
Manual Handwheel with gearbox |
HRZ50-M |
DN50 |
0-2.5 |
-40℃~+100℃ |
212 |
230 |
341 |
86 |
Manual Handwheel with gearbox |
HRZ65-M |
DN65 |
0-2.5 |
-40℃~+100℃ |
300 |
280 |
403 |
98 |
Manual Handwheel with gearbox |
HRZ80-M |
DN80 |
0-2.5 |
-40℃~+100℃ |
350 |
310 |
447 |
106 |
Manual Handwheel with gearbox |
HRZ100-M |
DN100 |
0-2.5 |
-40℃~+100℃ |
434 |
340 |
509 |
126 |
Manual Handwheel with gearbox |
HRZ125-M |
DN125 |
0-2.5 |
-40℃~+100℃ |
460 |
390 |
540 |
142 |
Manual Handwheel with gearbox |
HRZ150-M |
DN150 |
0-2.5 |
-40℃~+100℃ |
375 |
430 |
580 |
163 |
Manual Handwheel with gearbox |
HRZ200-M |
DN200 |
0-2.5 |
-40℃~+100℃ |
505 |
515 |
648 |
190 |
Manual Handwheel with gearbox |
HRZ250-M |
DN250 |
0-2.5 |
-40℃~+100℃ |
640 |
581 |
747 |
234 |
Manual Handwheel with gearbox |
HRZ300-M |
DN300 |
0-2.5 |
-40℃~+100℃ |
750 |
655 |
834 |
270 |
Manual Handwheel with gearbox |

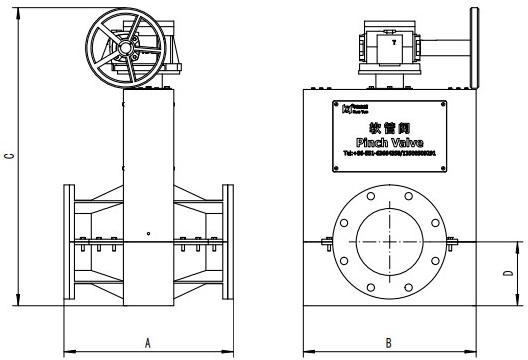

| Huayun HRZ（Heavy）pinch valve manual gearbox type | ||||||||
Product Model |
Nominal diameter
（mm） |
Nominal pressure
（MPa） |
Temperature range（℃） |
A（mm） |
B(mm) |
C（mm） |
D（mm） |
Drive mode |
HRZ125-MG |
DN125 |
0-2.5 |
-40℃~+100℃ |
460 |
390 |
950 |
142 |
Manual Handwheel with gearbox |
HRZ150-MG |
DN150 |
0-2.5 |
-40℃~+100℃ |
375 |
430 |
990 |
163 |
Manual Handwheel with gearbox |
HRZ200-MG |
DN200 |
0-2.5 |
-40℃~+100℃ |
505 |
515 |
1060 |
190 |
Manual Handwheel with gearbox |
HRZ250-MG |
DN250 |
0-2.5 |
-40℃~+100℃ |
640 |
581 |
1120 |
234 |
Manual Handwheel with gearbox |
HRZ300-MG |
DN300 |
0-2.5 |
-40℃~+100℃ |
750 |
655 |
1190 |
270 |
Manual Handwheel with gearbox |
HRZ350-MG |
DN350 |
0-2.5 |
-40℃~+100℃ |
890 |
1090 |
1260 |
320 |
Manual Handwheel with gearbox |
HRZ400-MG |
DN400 |
0-2.5 |
-40℃~+100℃ |
1090 |
1110 |
1320 |
340 |
Manual Handwheel with gearbox |
HRZ450-MG |
DN450 |
0-2.5 |
-40℃~+100℃ |
1120 |
1160 |
1390 |
390 |
Manual Handwheel with gearbox |
HRZ500-MG |
DN500 |
0-2.5 |
-40℃~+100℃ |
1240 |
1240 |
1430 |
440 |
Manual Handwheel with gearbox |
HRZ600-MG |
DN600 |
0-2.5 |
-40℃~+100℃ |
1450 |
1390 |
1520 |
510 |
Manual Handwheel with gearbox |
HRZ700-MG |
DN700 |
0-2.5 |
-40℃~+100℃ |
1660 |
1510 |
1650 |
560 |
Manual Handwheel with gearbox |
HRZ800-MG |
DN800 |
0-2.5 |
-40℃~+100℃ |
1880 |
1680 |
1730 |
610 |
Manual Handwheel with gearbox |
