Product Parameters

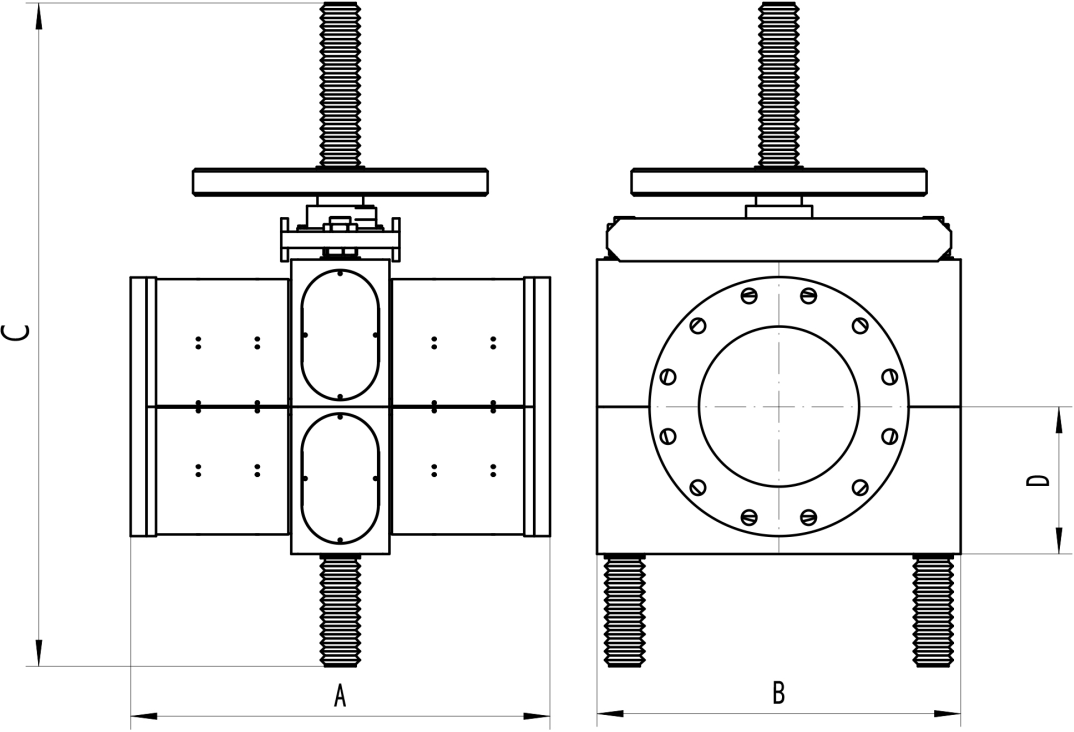

Huayun HRQ pinch valve manual handwheel type
Note: The table is a standard model and can be customized
Huayun HRQ(light)pinch valve manual gearbox type specification tabl |
||||||||
Product Model |
Nominal diameter（mm） |
Nominal pressure（MPa） |
Temperature range（℃） |
A（mm） |
B(mm) |
C（mm） |
D（mm） |
Drive mode |
HRQ25-M |
DN25 |
0-1.6 |
-40℃~+100℃ |
190 |
185 |
379 |
61 |
Manual Handwheel |
HRQ32-M |
DN32 |
0-1.6 |
-40℃~+100℃ |
210 |
195 |
392 |
70 |
Manual Handwheel |
HRQ50-M |
DN50 |
0-1.6 |
-40℃~+100℃ |
212 |
210 |
407 |
95 |
Manual Handwheel |
HRQ65-M |
DN65 |
0-1.6 |
-40℃~+100℃ |
300 |
275 |
472 |
115 |
Manual Handwheel |
HRQ80-M |
DN80 |
0-1.6 |
-40℃~+100℃ |
350 |
290 |
519 |
125 |
Manual Handwheel |
HRQ100-M |
DN100 |
0-1.6 |
-40℃~+100℃ |
434 |
327 |
579 |
135 |
Manual Handwheel |
HRQ125-M |
DN125 |
0-1.6 |
-40℃~+100℃ |
460 |
370 |
637 |
150 |
Manual Handwheel |
HRQ150-M |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
415 |
718 |
163 |
Manual Handwheel |
HRQ200-M |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
497 |
898 |
200 |
Manual Handwheel |
HRQ250-M |
DN250 |
0-1.6 |
-40℃~+100℃ |
640 |
555 |
1057 |
225 |
Manual Handwheel |
HRQ300-M |
DN300 |
0-1.6 |
-40℃~+100℃ |
750 |
610 |
1120 |
278 |
Manual Handwheel |

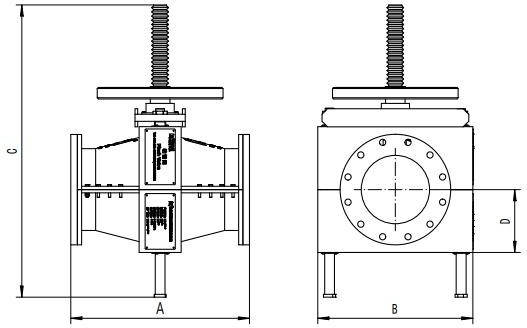

Huayun HRQ pinch valve manual gearbox type
Huayun HRQ(light)pinch valve manual gearbox type |
||||||||
Product Model |
Nominal diameter
（mm） |
Nominal pressure
（MPa） |
Temperature range（℃） |
A（mm） |
B(mm) |
C（mm） |
D（mm） |
Drive mode |
HRQ125-MG |
DN125 |
0-1.6 |
-40℃~+100℃ |
460 |
370 |
940 |
150 |
Manual Handwheel with gearbox |
HRQ150-MG |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
415 |
980 |
163 |
Manual Handwheel with gearbox |
HRQ200-MG |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
497 |
1050 |
200 |
Manual Handwheel with gearbox |
HRQ250-MG |
DN250 |
0-1.6 |
-40℃~+100℃ |
640 |
555 |
1110 |
225 |
Manual Handwheel with gearbox |
HRQ300-MG |
DN300 |
0-1.6 |
-40℃~+100℃ |
750 |
610 |
1180 |
278 |
Manual Handwheel with gearbox |
HRQ350-MG |
DN350 |
0-1.6 |
-40℃~+100℃ |
890 |
1040 |
1250 |
300 |
Manual Handwheel with gearbox |
HRQ400-MG |
DN400 |
0-1.6 |
-40℃~+100℃ |
1090 |
1090 |
1300 |
320 |
Manual Handwheel with gearbox |
HRQ450-MG |
DN450 |
0-1.6 |
-40℃~+100℃ |
1120 |
1140 |
1350 |
370 |
Manual Handwheel with gearbox |
HRQ500-MG |
DN500 |
0-1.6 |
-40℃~+100℃ |
1240 |
1190 |
1400 |
420 |
Manual Handwheel with gearbox |
HRQ600-MG |
DN600 |
0-1.6 |
-40℃~+100℃ |
1450 |
1350 |
1500 |
490 |
Manual Handwheel with gearbox |
HRQ700-MG |
DN700 |
0-1.6 |
-40℃~+100℃ |
1660 |
1490 |
1600 |
540 |
Manual Handwheel with gearbox |
HRQ800-MG |
DN800 |
0-1.6 |
-40℃~+100℃ |
1880 |
1610 |
1700 |
590 |
Manual Handwheel with gearbox |
