Product Parameters
Note: The table is a standard model and can be customized

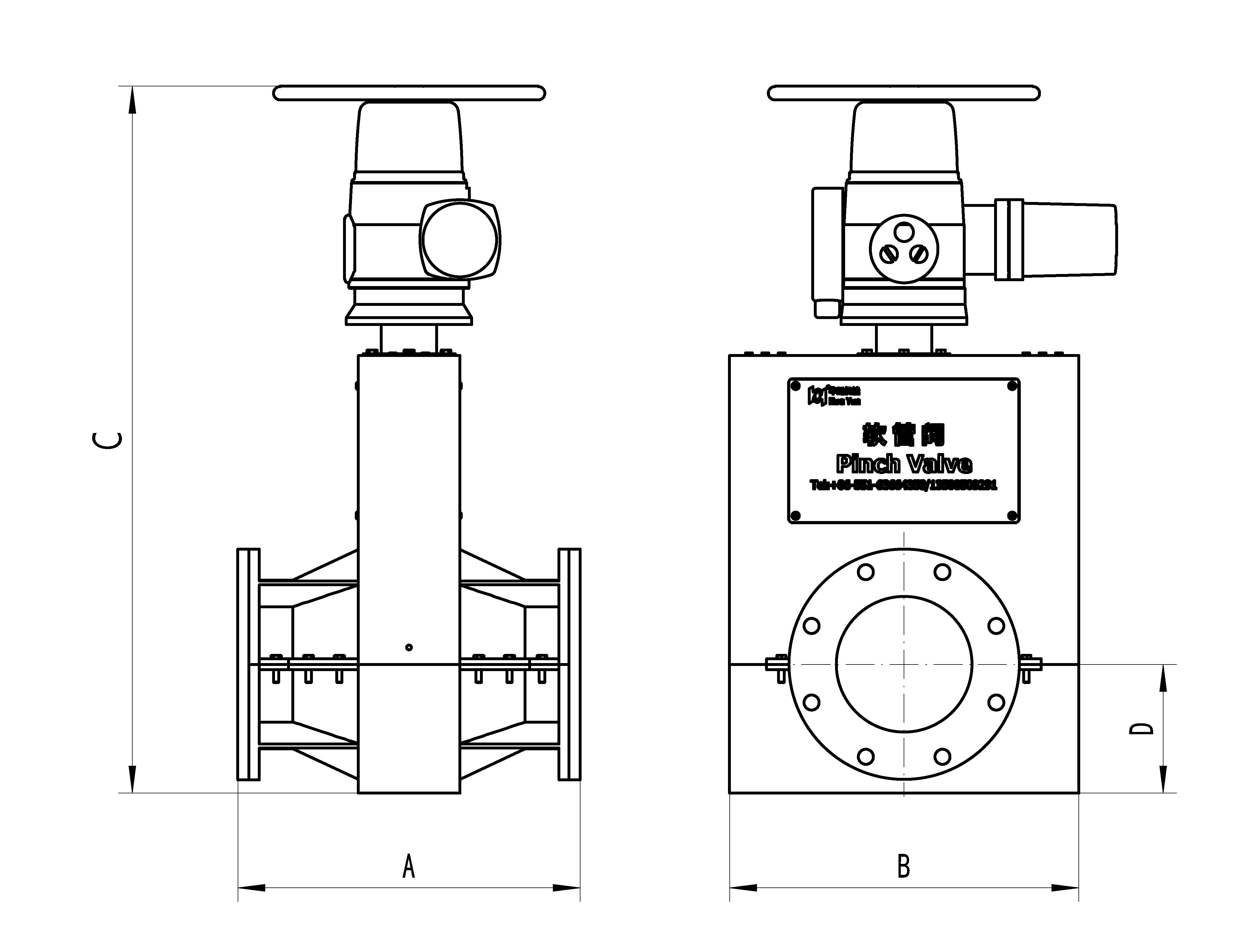

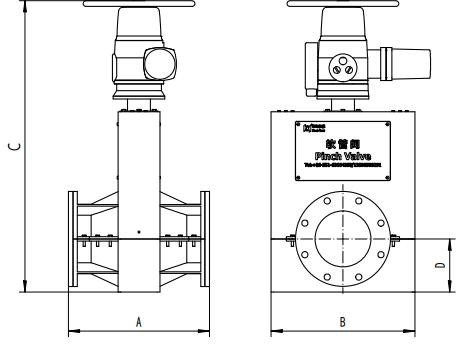

| Huayun HRZ（Heavy）pinch valve Electric type specification table | ||||||||
Product Model |
Nominal diameter
（mm） |
Nominal pressure
（MPa） |
Temperature range（℃） |
A（mm） |
B(mm) |
C（mm） |
D（mm） |
Drive mode |
HRZ25-EK |
DN25 |
0-2.5 |
-40℃~+100℃ |
180 |
190 |
514 |
60 |
Electric switch type |
HRZ25-ET |
DN25 |
0-2.5 |
-40℃~+100℃ |
180 |
190 |
514 |
60 |
Electric adjustment type |
HRZ32-EK |
DN32 |
0-2.5 |
-40℃~+100℃ |
210 |
210 |
605 |
76 |
Electric switch type |
HRZ32-ET |
DN32 |
0-2.5 |
-40℃~+100℃ |
210 |
210 |
605 |
76 |
Electric adjustment type |
HRZ50-EK |
DN50 |
0-2.5 |
-40℃~+100℃ |
212 |
230 |
630 |
86 |
Electric switch type |
HRZ50-ET |
DN50 |
0-2.5 |
-40℃~+100℃ |
212 |
230 |
630 |
86 |
Electric adjustment type |
HRZ65-EK |
DN65 |
0-2.5 |
-40℃~+100℃ |
300 |
280 |
694 |
98 |
Electric switch type |
HRZ65-ET |
DN65 |
0-2.5 |
-40℃~+100℃ |
300 |
280 |
694 |
98 |
Electric adjustment type |
HRZ80-EK |
DN80 |
0-2.5 |
-40℃~+100℃ |
350 |
310 |
720 |
106 |
Electric switch type |
HRZ80-ET |
DN80 |
0-2.5 |
-40℃~+100℃ |
350 |
310 |
720 |
106 |
Electric adjustment type |
HRZ100-EK |
DN100 |
0-2.5 |
-40℃~+100℃ |
434 |
340 |
794 |
126 |
Electric switch type |
HRZ100-ET |
DN100 |
0-2.5 |
-40℃~+100℃ |
434 |
340 |
794 |
126 |
Electric adjustment type |
HRZ125-EK |
DN125 |
0-2.5 |
-40℃~+100℃ |
460 |
390 |
847 |
142 |
Electric switch type |
HRZ125-ET |
DN125 |
0-2.5 |
-40℃~+100℃ |
460 |
390 |
847 |
142 |
Electric adjustment type |
HRZ150-EK |
DN150 |
0-2.5 |
-40℃~+100℃ |
375 |
430 |
935 |
163 |
Electric switch type |
HRZ150-ET |
DN150 |
0-2.5 |
-40℃~+100℃ |
375 |
430 |
935 |
163 |
Electric adjustment type |
HRZ200-EK |
DN200 |
0-2.5 |
-40℃~+100℃ |
505 |
515 |
1043 |
190 |
Electric switch type |
HRZ200-ET |
DN200 |
0-2.5 |
-40℃~+100℃ |
505 |
515 |
1043 |
190 |
Electric adjustment type |
HRZ250-EK |
DN250 |
0-2.5 |
-40℃~+100℃ |
640 |
581 |
1152 |
234 |
Electric switch type |
HRZ250-ET |
DN250 |
0-2.5 |
-40℃~+100℃ |
640 |
581 |
1152 |
234 |
Electric adjustment type |
HRZ300-EK |
DN300 |
0-2.5 |
-40℃~+100℃ |
750 |
655 |
1246 |
270 |
Electric switch type |
HRZ300-ET |
DN300 |
0-2.5 |
-40℃~+100℃ |
680 |
655 |
1246 |
270 |
Electric adjustment type |
HRZ350-EK |
DN350 |
0-2.5 |
-40℃~+100℃ |
890 |
1090 |
1690 |
320 |
Electric switch type |
HRZ350-ET |
DN350 |
0-2.5 |
-40℃~+100℃ |
890 |
1090 |
1690 |
320 |
Electric adjustment type |
HRZ400-EK |
DN400 |
0-2.5 |
-40℃~+100℃ |
1090 |
1110 |
1780 |
340 |
Electric switch type |
HRZ400-ET |
DN400 |
0-2.5 |
-40℃~+100℃ |
1090 |
1110 |
1780 |
340 |
Electric adjustment type |
HRZ450-EK |
DN450 |
0-2.5 |
-40℃~+100℃ |
1120 |
1160 |
1830 |
390 |
Electric switch type |
HRZ450-ET |
DN450 |
0-2.5 |
-40℃~+100℃ |
1120 |
1160 |
1830 |
390 |
Electric adjustment type |
HRZ500-EK |
DN500 |
0-2.5 |
-40℃~+100℃ |
1240 |
1240 |
1895 |
440 |
Electric switch type |
HRZ500-ET |
DN500 |
0-2.5 |
-40℃~+100℃ |
1240 |
1240 |
1895 |
440 |
Electric adjustment type |
HRZ600-EK |
DN600 |
0-2.5 |
-40℃~+100℃ |
1450 |
1390 |
1950 |
510 |
Electric switch type |
HRZ600-ET |
DN600 |
0-2.5 |
-40℃~+100℃ |
1450 |
1390 |
1950 |
510 |
Electric adjustment type |
HRZ700-EK |
DN700 |
0-2.5 |
-40℃~+100℃ |
1660 |
1510 |
2120 |
560 |
Electric switch type |
HRZ700-ET |
DN700 |
0-2.5 |
-40℃~+100℃ |
1660 |
1510 |
2120 |
560 |
Electric adjustment type |
HRZ800-EK |
DN800 |
0-2.5 |
-40℃~+100℃ |
1880 |
1680 |
2220 |
610 |
Electric switch type |
HRZ800-ET |
DN800 |
0-2.5 |
-40℃~+100℃ |
1880 |
1680 |
2220 |
610 |
Electric adjustment type |
