Product Parameters
Note: The table is a standard model and can be customized

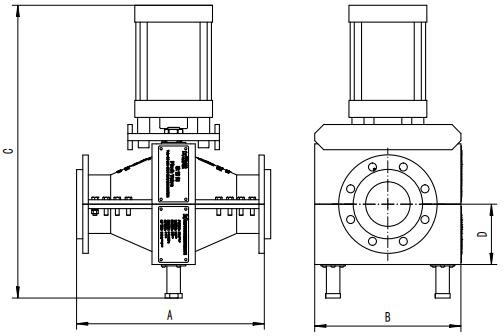

Huayun HRQ（light）pinch valve Pneumatic type specification table |
||||||||
Product Model |
Nominal diameter
（mm） |
Nominal pressure
（MPa） |
Temperature range（℃） |
A（mm） |
B(mm) |
C（mm） |
D（mm） |
Drive mode |
HRQ25-P |
DN25 |
0-1.6 |
-40℃~+100℃ |
190 |
185 |
438 |
61 |
Pneumatic type |
HRQ32-P |
DN32 |
0-1.6 |
-40℃~+100℃ |
210 |
195 |
456 |
70 |
Pneumatic type |
HRQ50-P |
DN50 |
0-1.6 |
-40℃~+100℃ |
212 |
210 |
482 |
95 |
Pneumatic type |
HRQ65-P |
DN65 |
0-1.6 |
-40℃~+100℃ |
300 |
275 |
552 |
115 |
Pneumatic type |
HRQ80-P |
DN80 |
0-1.6 |
-40℃~+100℃ |
350 |
290 |
609 |
125 |
Pneumatic type |
HRQ100-P |
DN100 |
0-1.6 |
-40℃~+100℃ |
434 |
327 |
655 |
135 |
Pneumatic type |
HRQ125-P |
DN125 |
0-1.6 |
-40℃~+100℃ |
460 |
370 |
717 |
150 |
Pneumatic type |
HRQ150-P |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
415 |
784 |
163 |
Pneumatic type |
HRQ200-P |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
497 |
1010 |
200 |
Pneumatic type |
HRQ250-P |
DN250 |
0-1.6 |
-40℃~+100℃ |
640 |
555 |
1165 |
225 |
Pneumatic type |
HRQ300-P |
DN300 |
0-1.6 |
-40℃~+100℃ |
750 |
610 |
1240 |
278 |
Pneumatic type |
HRQ350-P |
DN350 |
0-1.6 |
-40℃~+100℃ |
890 |
1040 |
1290 |
300 |
Pneumatic type |
HRQ400-P |
DN400 |
0-1.6 |
-40℃~+100℃ |
1090 |
1090 |
1310 |
320 |
Pneumatic type |
