Product Parameters
Note: The table is a standard model and can be customized

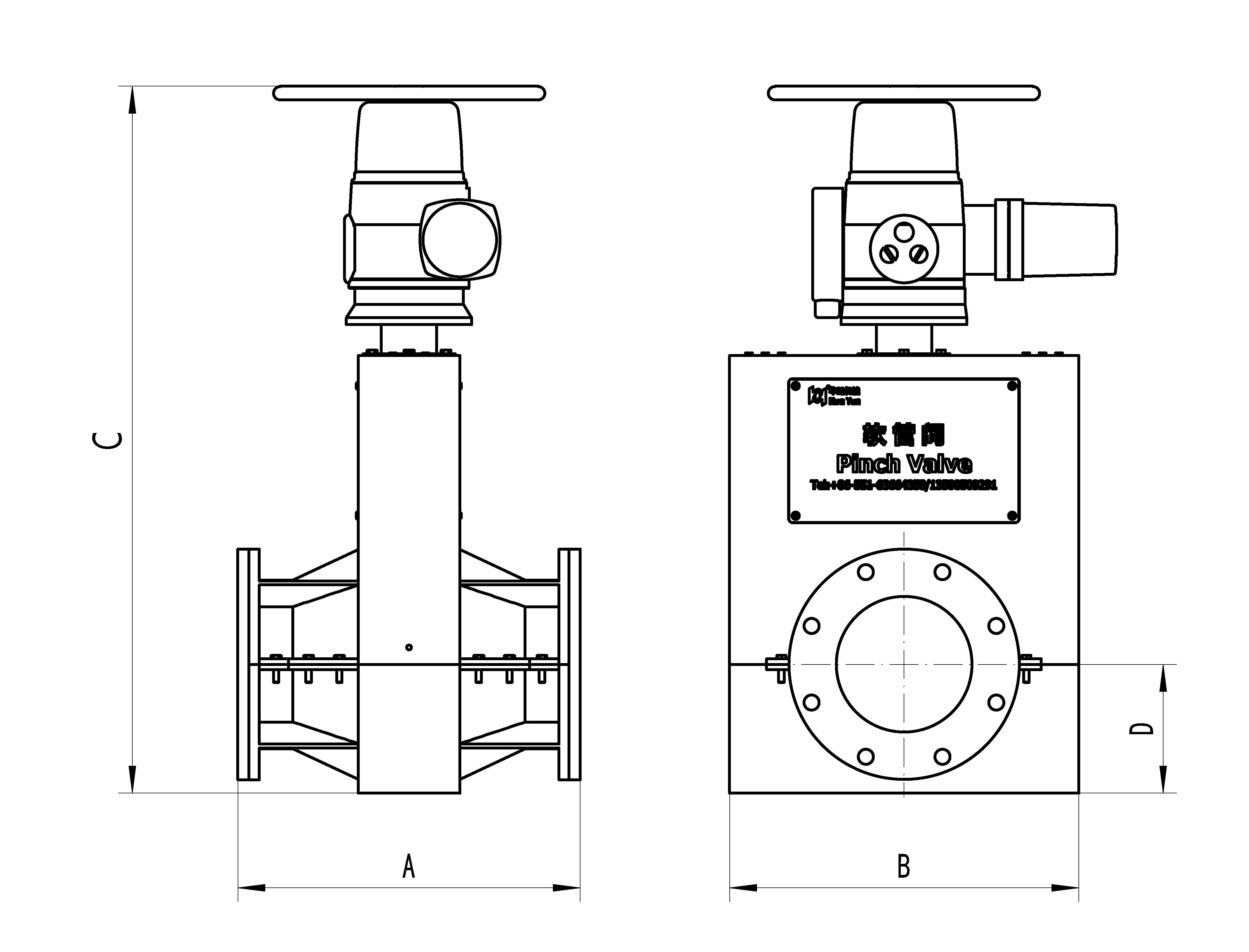

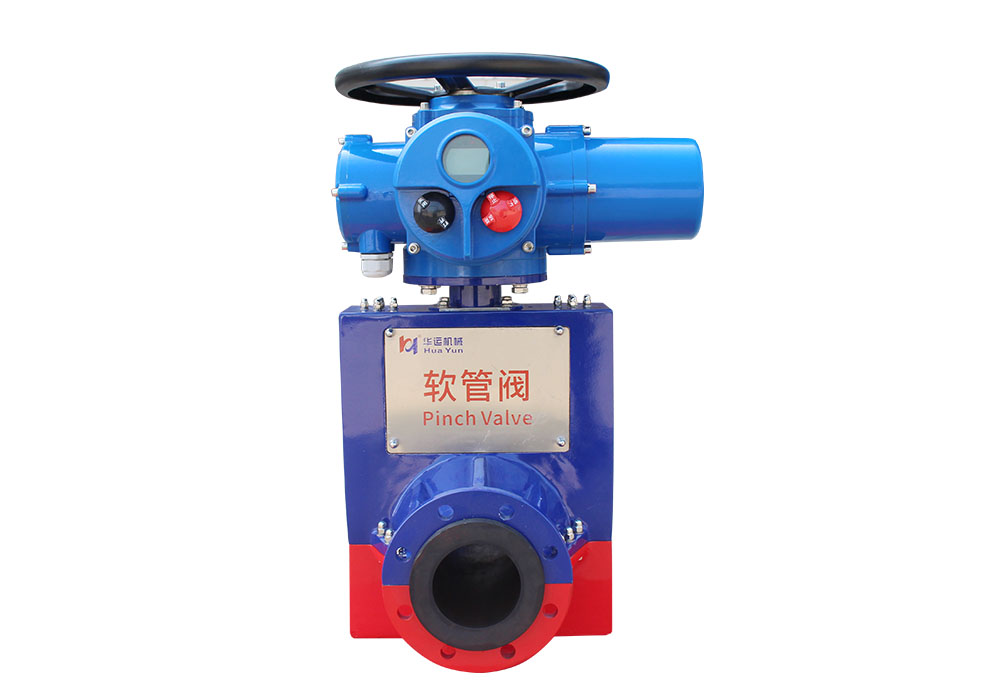

Huayun HRZ (Heavy) pinch valve Electric type specification table
|
||||||||
Product Model | Nominal diameter(mm) |
Nominal pressure(Mpa) |
Temperature range(℃) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
Drive mode |
HRZ25 -EK |
DN25 |
0-2.0 |
-40℃~+100℃ |
180 |
190 |
514 |
35 |
Electric switch type |
|
HRZ25 -ET |
DN25 |
0-2.0 |
-40℃~+100℃ |
180 |
190 |
514 |
35 |
Electric adjustment type |
HRZ32 -EK |
DN32 |
0-2.0 |
-40℃~+100℃ |
210 |
220 |
605 |
45 |
Electric switch type |
HRZ32 -ET |
DN32 |
0-2.0 |
-40℃~+100℃ |
210 |
220 |
605 |
45 |
Electric adjustment type |
HRZ50-EK |
DN50 |
0-2.0 |
-40℃~+100℃ |
250 |
240 |
655 |
75 |
Electric switch type |
HRZ50-ET |
DN50 |
0-2.0 |
-40℃~+100℃ |
250 |
240 |
655 |
75 |
Electric adjustment type |
HRZ65-EK |
DN65 |
0-2.0 |
-40℃~+100℃ |
300 |
280 |
694 |
98 |
Electric switch type |
HRZ65-ET |
DN65 |
0-2.0 |
-40℃~+100℃ |
300 |
280 |
694 |
98 |
Electric adjustment type |
HRZ80-EK |
DN80 |
0-2.0 |
-40℃~+100℃ |
350 |
310 |
720 |
106 |
Electric switch type |
HRZ80-ET |
DN80 |
0-2.0 |
-40℃~+100℃ |
350 |
310 |
720 |
106 |
Electric adjustment type |
HRZ100-EK |
DN100 |
0-2.0 |
-40℃~+100℃ |
434 |
340 |
794 |
126 |
Electric switch type |
HRZ100-ET |
DN100 |
0-2.0 |
-40℃~+100℃ |
434 |
340 |
794 |
126 |
Electric adjustment type |
HRZ125-EK |
DN125 |
0-1.6 |
-40℃~+100℃ |
460 |
390 |
847 |
142 |
Electric switch type |
HRZ125-ET |
DN125 |
0-1.6 |
-40℃~+100℃ |
460 |
390 |
847 |
142 |
Electric adjustment type |
HRZ150-EK |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
430 |
935 |
163 |
Electric switch type |
HRZ150-ET |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
430 |
935 |
163 |
Electric adjustment type |
HRZ200-EK |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
509 |
1050 |
190 |
Electric switch type |
HRZ200-ET |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
509 |
1050 |
190 |
Electric adjustment type |
HRZ250-EK |
DN250 |
0-1.6 |
-40℃~+100℃ |
625 |
584 |
1152 |
204 |
Electric switch type |
HRZ250-ET |
DN250 |
0-1.6 |
-40℃~+100℃ |
625 |
584 |
1152 |
204 |
Electric adjustment type |
HRZ300-EK |
DN300 |
0-1.6 |
-40℃~+100℃ |
764 |
655 |
1246 |
228 |
Electric switch type |
HRZ300-ET |
DN300 |
0-1.6 |
-40℃~+100℃ |
764 |
655 |
1246 |
228 |
Electric adjustment type |
Operation curve chart
