Product Parameters
Note: The table is a standard model and can be customized

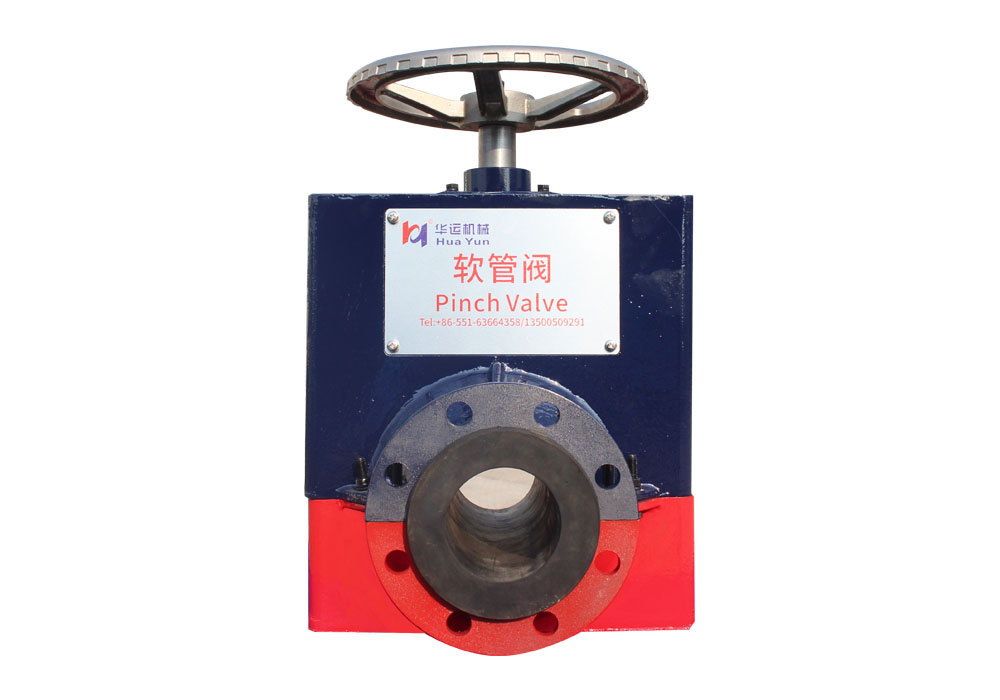

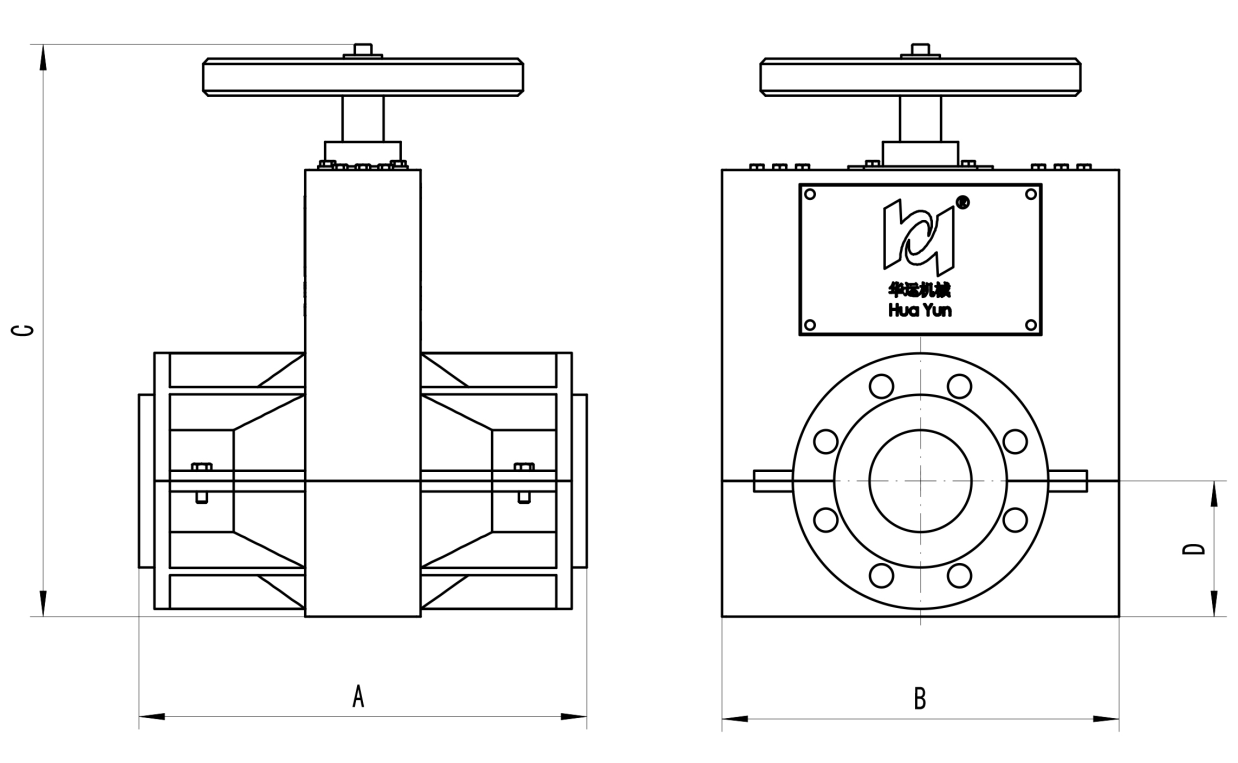

Huayun HRZ (Heavy) pinch valve manual type specification table |
||||||||
Product Model |
Nominal diameter(mm) |
Nominal pressure(Mpa) |
Temperature range(℃) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
Drive mode |
HRZ25-M |
DN25 |
0-2.0 |
-40℃~+100℃ |
180 |
190 |
314 |
35 |
Manual type |
HRZ32-M |
DN32 |
0-2.0 |
-40℃~+100℃ |
210 |
220 |
350 |
45 |
Manual type |
HRZ50-M |
DN50 |
0-2.0 |
-40℃~+100℃ |
250 |
240 |
385 |
75 |
Manual type |
HRZ65-M |
DN65 |
0-2.0 |
-40℃~+100℃ |
300 |
280 |
424 |
98 |
Manual type |
HRZ80-M |
DN80 |
0-2.0 |
-40℃~+100℃ |
350 |
310 |
447 |
106 |
Manual type |
HRZ100-M |
DN100 |
0-2.0 |
-40℃~+100℃ |
434 |
340 |
524 |
126 |
Manual type |
HRZ125-M |
DN125 |
0-1.6 |
-40℃~+100℃ |
460 |
390 |
577 |
142 |
Manual type |
HRZ150-M |
DN150 |
0-1.6 |
-40℃~+100℃ |
375 |
430 |
665 |
163 |
Manual type |
HRZ200-M |
DN200 |
0-1.6 |
-40℃~+100℃ |
505 |
509 |
780 |
190 |
Manual type |
HRZ250-M |
DN250 |
0-1.6 |
-40℃~+100℃ |
625 |
584 |
882 |
204 |
Manual type |
HRZ300-M |
DN300 |
0-1.6 |
-40℃~+100℃ |
764 |
655 |
976 |
228 |
Manual type |
