Product classification

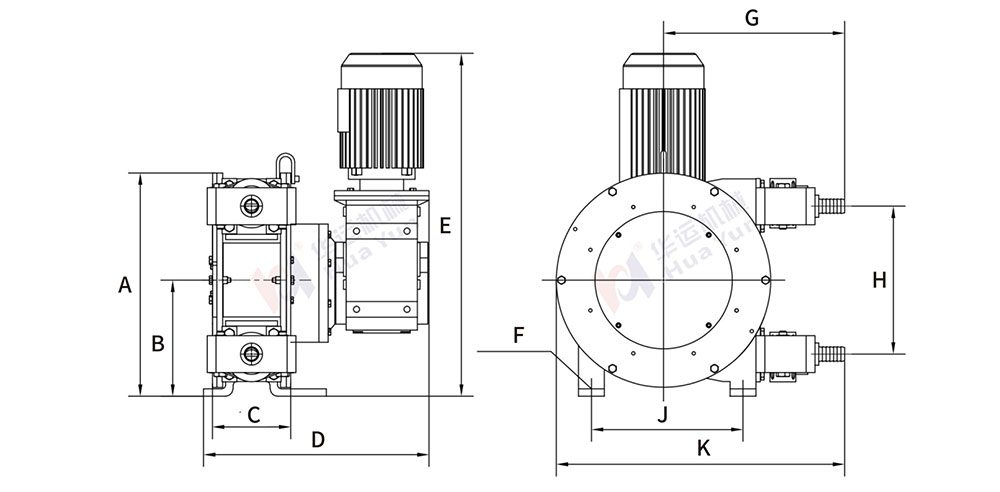

Product Parameters
Model |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
Flange |
|||||||||||
IHP20Q |
302 |
157 |
106 |
305 |
464 |
Φ13 |
245 |
200 |
205 |
390 |
DN20 |
|||||||||||
| IHP25Q |
370 |
190 |
122 |
343 |
547 |
Φ15 |
329 |
250 |
260 |
509 |
DN25 |
|||||||||||
IHP34Q |
445 |
230 |
150 |
355 |
750 |
Φ17 |
357 |
305 |
300 |
565 |
DN32/40 |
|||||||||||

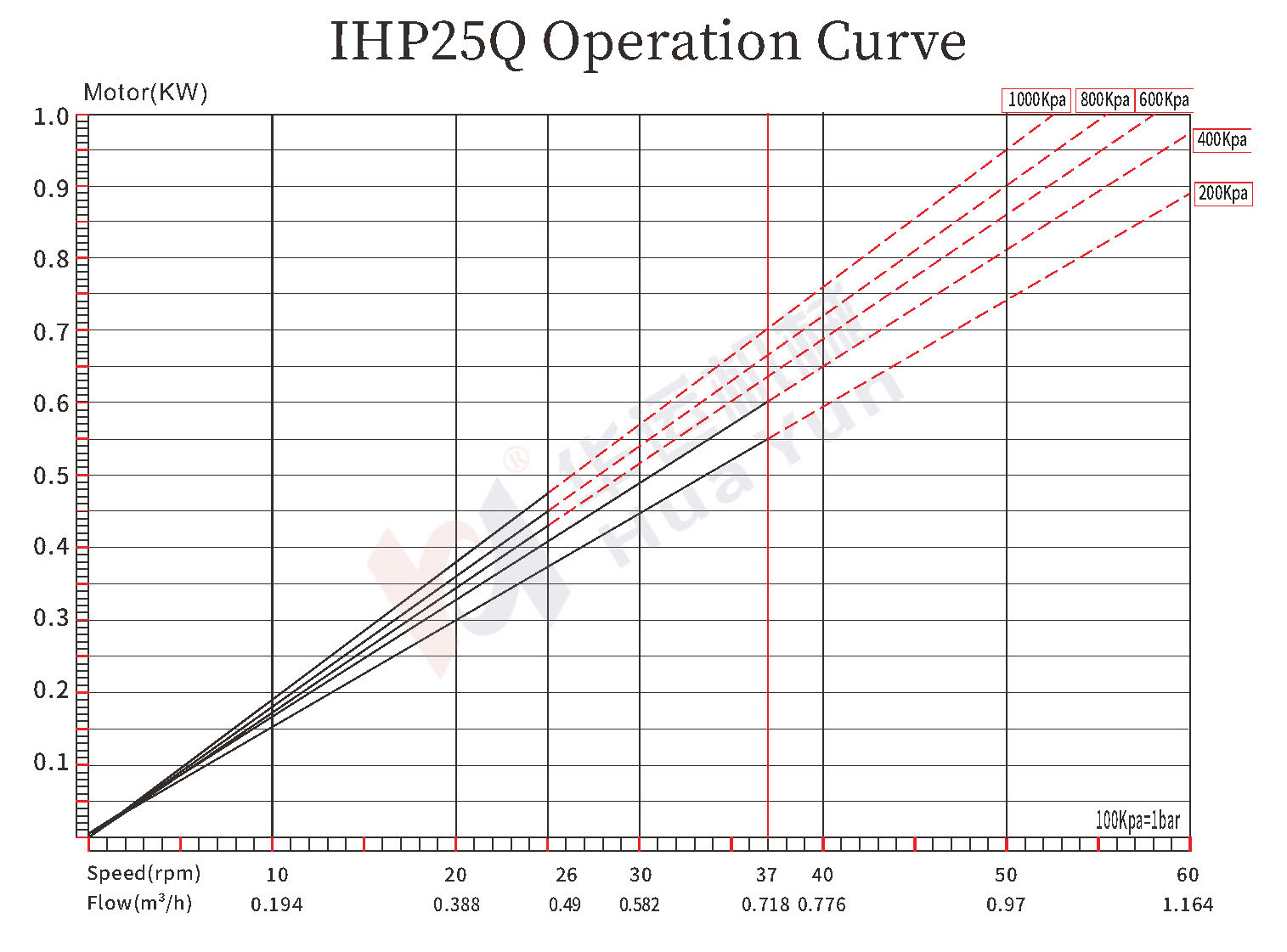

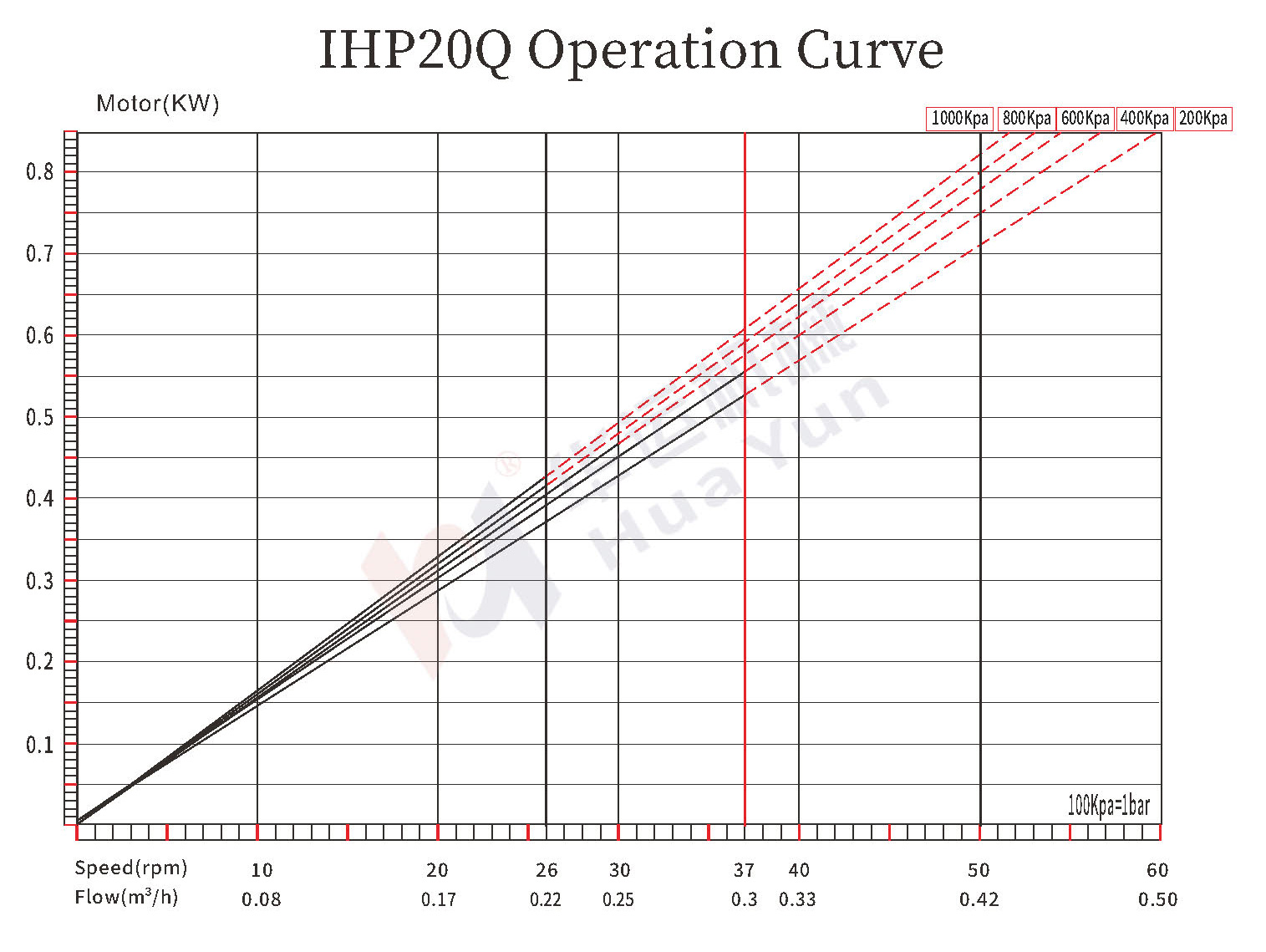

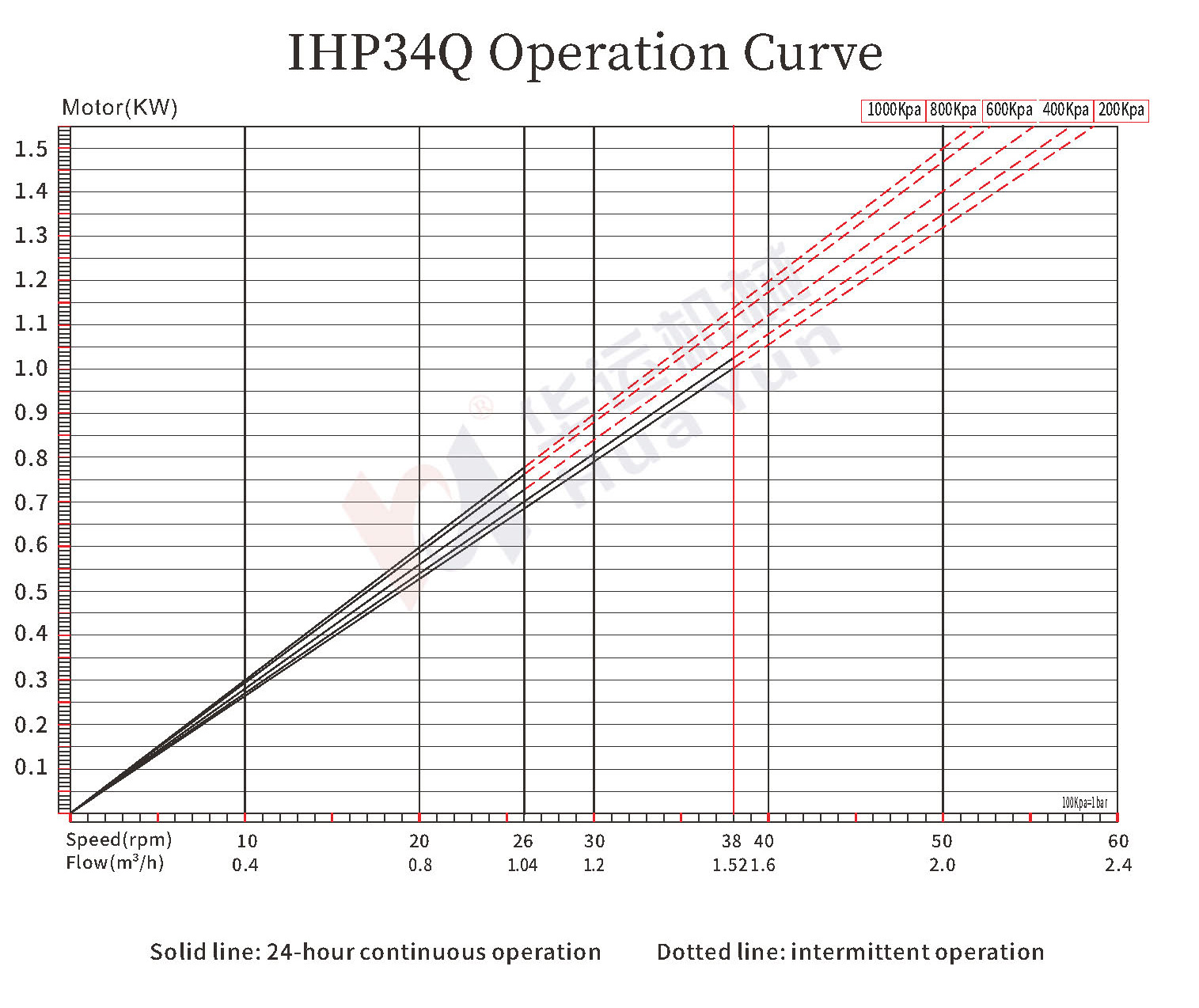

Operation curve chart
